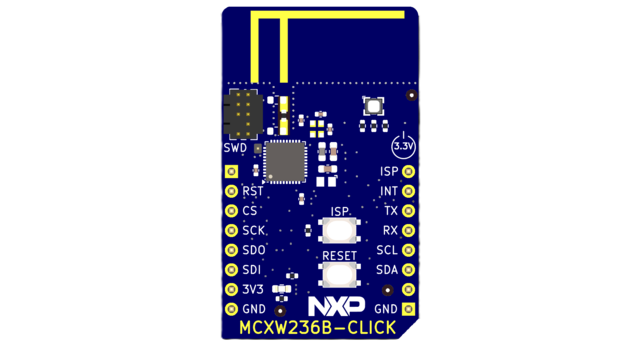

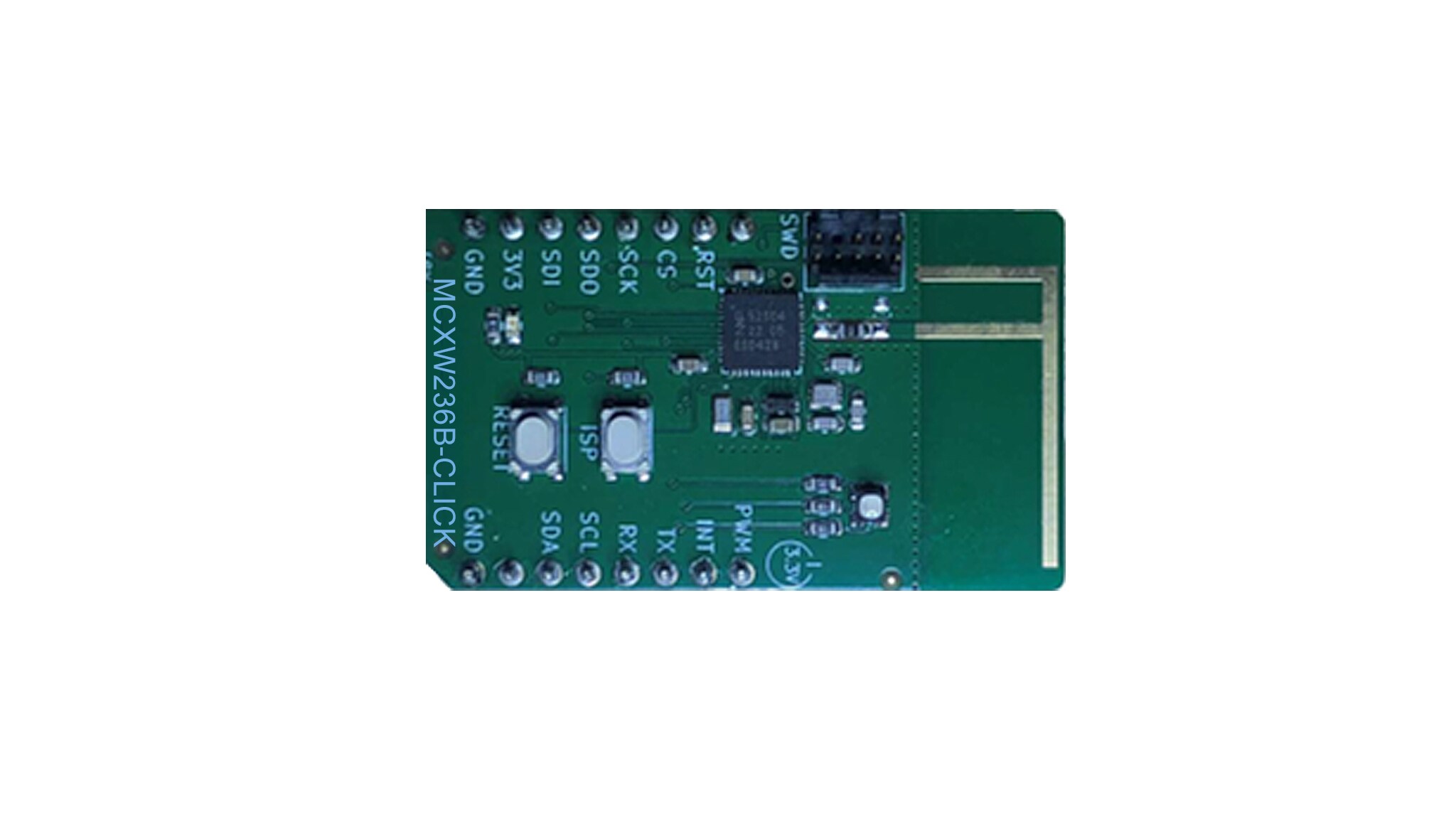

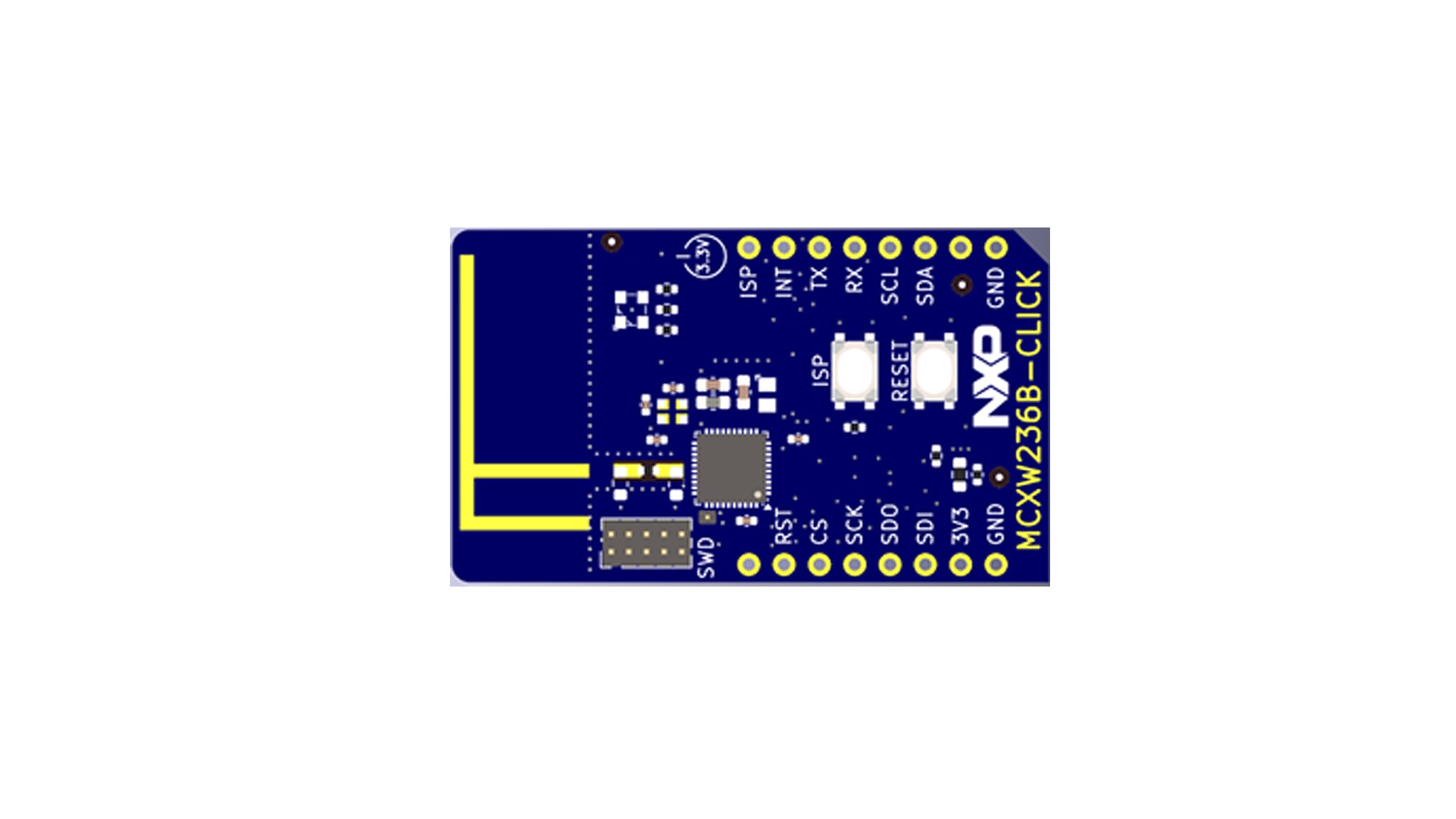

MCXW236B-CLICK Board for MCX W23 Bluetooth LE MCU

MCXW236B-CLICK new
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

The MCXW236B-CLICK is an add-on board that enriches NXP’s expansion board hub with a Bluetooth LE Click board that enable connectivity to a wide range of MCU and MPU FRDM boards. This board features the MCX W23 Bluetooth® Low Energy (LE) 5.3 wireless microcontroller unit (MCU) and once connected to the existing FRDM boards, it offers easy evaluation and rapid prototyping of the MCX W23 wireless MCU. Connecting this board with FRDM MCXC or MCXN can also provide a medium to further explore the ADC/DAC capabilities.

Block Diagram

MCXW236B-CLICK

MCXW236B-CLICK Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX W Series Microcontrollers

  • MCX-W23: MCX W23: Ultra-Low Power Bluetooth® Low Energy Solution With Arm® Cortex® M33 TrustZone® for IoT

Features

Key Features

  • MCX W23 Arm™ Cortex™ -M33 core @32MHz
  • Up to 1 MB Flash
  • 128 kB RAM application memory
